Hornby R4773

BR, Mk1 Corridor Composite, W16198 - Era 7

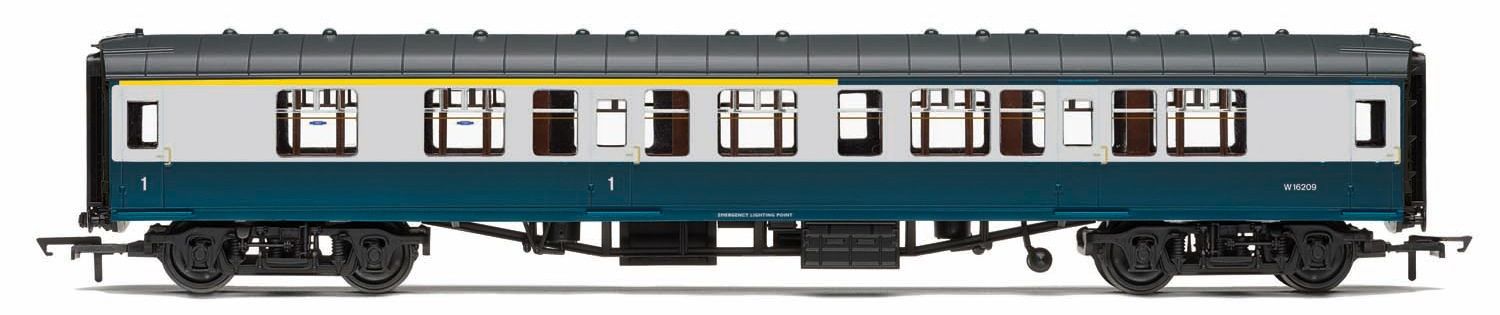

Manufacturer catalogue image

Prototype Eras
Era 6 (1967 to 1972) British Rail Blue (Pre-TOPS)
Era 7 (1972 to 1982) British Rail Blue (TOPS)

Manufacturer description

Designed by R.A Riddles (The Mechanical & Engineering Member of the Railway Executive) and aided by E. Pugson (Carriage & Wagon Chief Officer) and E.S Cox (Design Chief Officer), the Mark 1 carriage had a separate body and underframe with a standard body length of 64ft 6in, an underframe 63ft 5in long and bogies at 46ft 6in centers. Body width was eventually settled at 8ft 8in, at cantrail height. The stock was introduced in 1951 in sets on 'Festival of Britain' trains being built through to 1964, when superseded by the Mark II design.

The Brake Second Open (BSO) consists of a standard class open passenger saloon, with a center aisle, a guard's compartment with hand brake and a lockable luggage compartment. This was built between 1955 and 1963 to two diagrams: 183 and 184. 181 examples were built in total, 163 examples of Diag.183 and eighteen Diag.184 examples. These ones differed in having Commonwealth Bogies, Fluorescent Lighting and a door separating the sixteen non smoking seats from the twenty three smoking seats. The early deliveries went to the ER/NER and WR, with the ScR batch arriving in 1959. Long-lasting, they ran in crimson and cream, chocolate and cream, lined maroon, and blue/grey.

The First Open (FO) consists of a first class open passenger saloon with a center aisle and 119 examples of the Diag. 73 were built between 1951 and 1963 (seventeen similar Diag. 72 examples differed in having the middle doors central, with half windows each side and seating re-arranged with no central table). Early allocation was split between Eastern, Midland and Southern regions, with later allocations including Western and Scottish regions. Some examples went on to become Heritage/VIP charter stock and were liveried in Intercity colours.

Catalogue listing

Brand:
Hornby
Product Code:
R4773
GTIN:
5055288637306
RRP:
£49.49
Release date:
April 2017

Model details

Finish
Painted
Gauge
OO
Livery
Blue & Grey
Colour
Blue
Couplings
NEM
Coupling
NEM / Tension lock
Minimum radius curve
Radius 2
Running number
W16198

Prototype information

Coach type
British Railways Mark 1
Operator
BR
TOPS classification
CK (Composite Corridor)
Wheel arrangement
Bogies (BR1, BR2, Commonwealth or B4 types used)
Designer
British Railways
Built
1951 to 1963
Built by
BR Workshops Cravens Gloucester Railway Carriage & Wagon Company
