Accurascale ACC2244-DCC

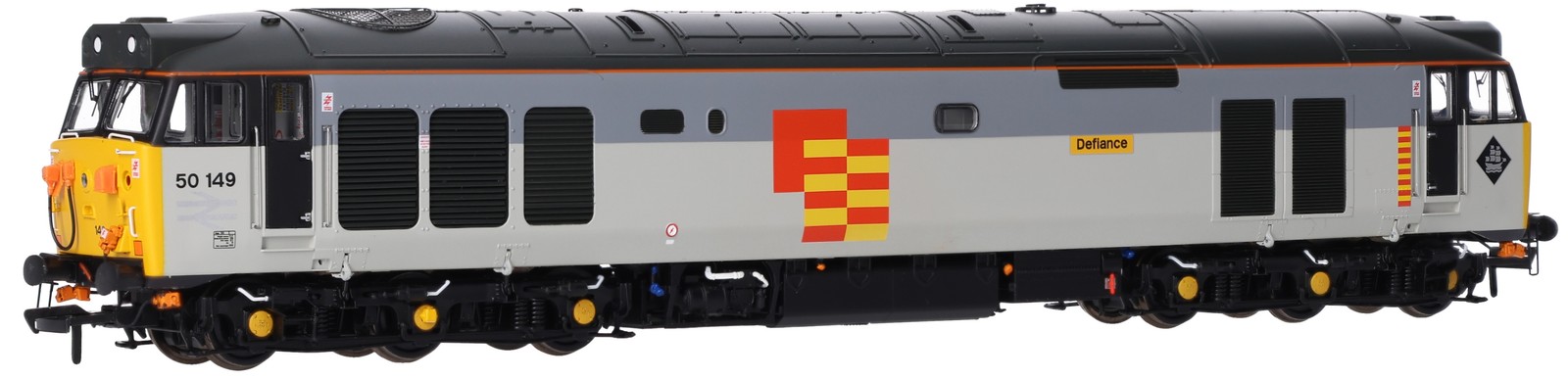

BR Class 50 - Railfreight General - 50149 'Defiance' - Exclusive - DCC Sound Fitted

Manufacturer catalogue image - please note that pre-release images may be CAD renders or CGI images rather than photographs

Prototype Era
Era 7 (1972 to 1982) British Rail Blue (TOPS)

Manufacturer description

BR Class 50 - Railfreight General - 50149 'Defiance' - Exclusive
DCC Sound Fitted

The second half of the 1980s saw a potential new direction for the Class 50s as passenger work began to dry up. While 1987 brought sad news with the first three examples switched off, Plymouth’s Laira depot also outshopped the former 50049 Defiance in the stunning new Railfreight General livery with re-geared CP7 bogies and new 50149 number. The sole member of the Class 50/1 sub class, it was primarily used in the South West on china clay and Speedlink wagonload duties before the project was cancelled. This was partially due to poor wheelslip protection and lack of sanding equipment, both ironically removed during refurbishment and considered too expensive to reinstate. It was returned to standard condition in February 1989 and repainted in the revised NSE scheme.

SPECIFICATION

• Highly-detailed OO scale model, 1:76.2 scale
• Minimum Radius 438mm (2nd Radius Set-track) in OO
• Die-cast metal chassis
• RP25-110 profile OO wheels with provision for re-gauging with scale-sized wheels for P4/EM gauges – with simple ride height adjustment – and ability to set brake blocks in line with wheels
• Separately-applied etched metal/plastic detail parts, including grab handles, steps, wipers, etc.
• Scale width wire handrails
• Etched metal pre-painted nameplates and crests (where applicable) provided for customer to install
• Interchangeable printed headcodes with full description covering the first nine years of the class plus preservation era
• Scale-sized and mounted snowploughs provided for customer to install, with one-piece NEM mounted option
• Full underframe tank, battery box and full-formed compressor detail with extensive pipework and other separate parts
• Fully sprung metal buffers and bufferplate, factory-fitted pipework and screw couplings (for display)
• Fully sprung buffers, super-fine pipework and screw couplings (for display)
• Kinetic NEM coupler mounts at correct height and mini-tension-lock couplers

Deluxe Features

• Separately powered working radiator fan with different speed settings
• PowerPack capacitor for uninterrupted power
• Custom ‘Accurathrash’  Speaker Technology including large ‘Accurathrash’ Style Bass Speaker (on DCC Sound-fitted models only)
• Hall sensor for flange squeal effect (on DCC Sound-fitted models only)

DCC Features

• DCC ready with PowerPack capacitor for uninterrupted power
• DCC ready or Factory-Fitted DCC Sound options

High Performance Traction features

• Five-Pole motor with two flywheels
• Helical Gear box for maximum performance and slow speed running
• Gearing arranged so locomotive can achieve minimum scale top speed of 125 mph (200 km/h)
• All wheel drive (sprung centre axle) and all wheel pickup

Fully detailed Lighting Pack features:

• Directional lighting, DC and DCC
• Switchable Red and white marker lights with day/night options
• Switchable Red and white marker lights with correctly configured lights for preservation era oddballs 50008 and 50044
• Interior lighting with cast electrical compartment and engine bay detail on metal motor enclosure
• Separately switched cab lighting and illuminated, driver’s desk, auto/off on movement

Catalogue listing

Model details

Prototype information

^* Class names often change over the lifespan of a locomotive, so this is not necessarily the class name used by the operator in the period modelled.
