Hornby R3617

BR, Rebuilt Merchant Navy Class, 4-6-2, 35030 ‘Elder Dempster Lines’ - Era 5

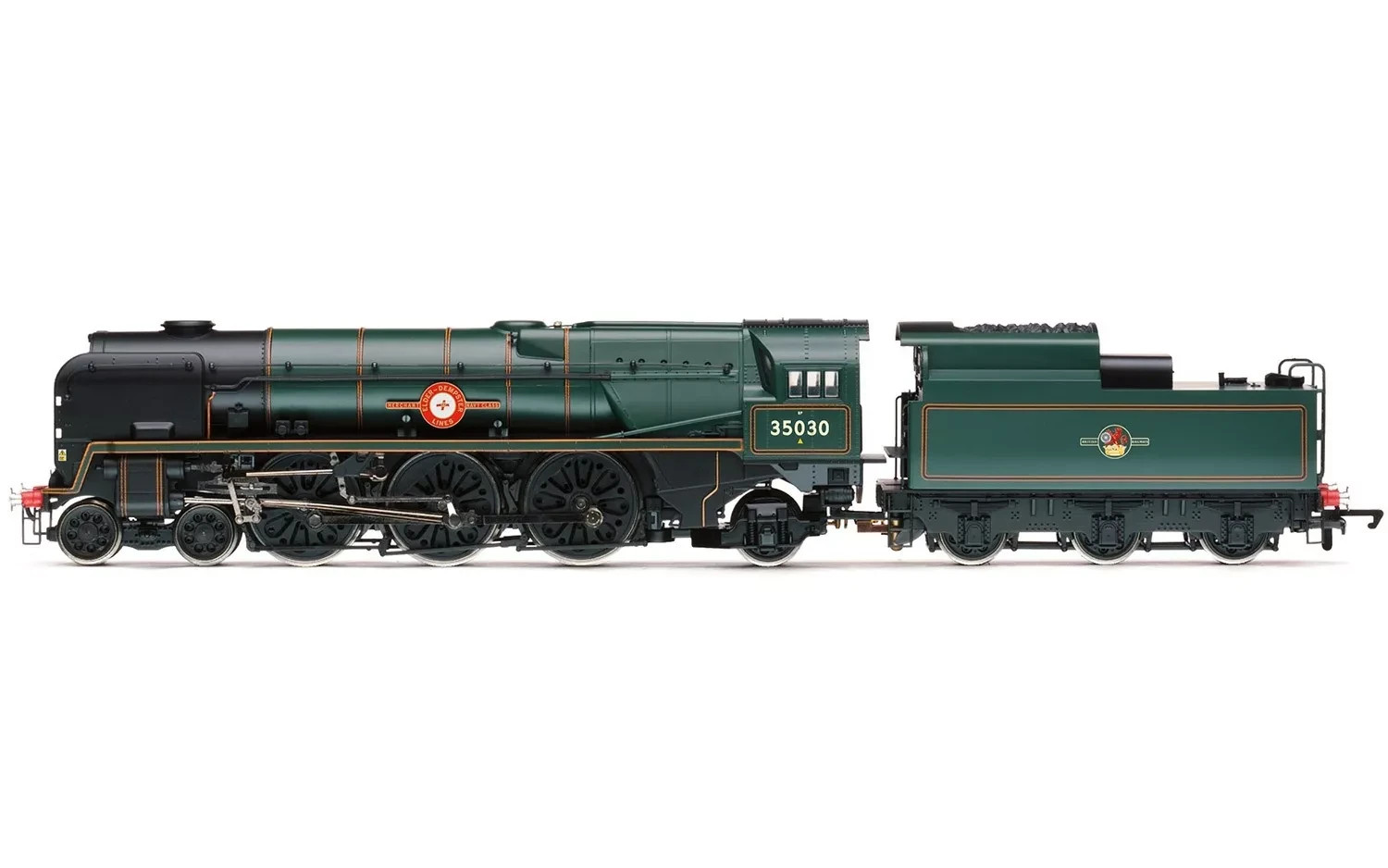

Manufacturer catalogue image - please note that pre-release images may be CAD renders or CGI/AI images rather than photographs

Prototype Eras
Era 4 (1948 to 1956) British Railways Early Crest
Era 5 (1956 to 1966) British Railways Late Crest

Manufacturer description

Conceived in 1937 when Oliver Bulleid became Chief Mechanical Engineer of the Southern Railway. The Merchant Navy Class represented Bulleid's vision for a quick accelerating, mixed traffic 4-6-2 locomotive equally capable of hauling passenger services (such as the Golden Arrow and Atlantic Coast Expresses), or freight workings to a speed of around 75mph.

In 1934, Bulleid had been opposed the use of streamlining but for the Merchant Navy's 'air-smoothed' design it suited his purposes, being easy to clean mechanically and hiding the boiler's external pipes, which, in turn, meant they could be run for function rather than aesthetics. Of all the new features Bulleid incorporated into the design. Perhaps the most ingenious and, ultimately, most controversial, was his decision to totally enclose the valve motion in an oil bath to prevent attritional wear through grit ingress. Despite the onset of war in 1939, Bulleid's design was accepted by the wartime Railway's Executive Committee and production commenced through November 1940 at Eastleigh Works, the first loco, 21C1 Channel Packet being named on March 10, 1941.

The reaction to the new design was divided into two camps: The footplate staff were dramatically in favor whilst the maintenance staff cursed the design, but it was Bulleid's departure from the Southern in September 1949 that decided the fate of his air-smoothed Pacific locomotives. Reliability, ease of maintenance and the complete withdrawal of steam were high on British Rail's priority list and for a while there was the distinct possibility that the class would be scrapped.

By 1954 it was apparent that steam would continue to be required, at least over the next decade, and consideration was given to the rebuilding of the Merchant Navy locomotives, incorporating the existing boilers and fireboxes. A report by the CME's office at Brighton in January 1955 recommended this course of action and in February 1956 a totally rebuilt and very visually different 35018 British India Line emerged from Eastleigh Works, to be followed over the next three years by the remaining twenty nine, 35006 Peninsular & Oriental S.N.Co. being the last in October 1959.

Maintenance was now easier, but the train crews did not find the rebuilt engines to offer the improvements hoped for by Brighton in their report. As Bulleid pointed out, every negative levied at his original design had already been anticipated and costed whilst any savings through rebuilding related to theoretical improvements only. Withdrawal of the class commenced in February 1964, their traditional workings being taken over by Warship class diesel-hydraulic locomotives and the final seven engines were withdrawn during 1967, with the end of steam on the Southern region. Eleven of the class were eventually saved from the cutter's torch and now survive in various states of preservation across the country.

35030 Elder Dempster Lines was the last of the Merchant Navy class to be built, entering traffic on April 1, 1949. The rebuilding from its original air-smoothed form came between March and the end of April 1958, having covered just over 350,000 miles. Re-entering traffic at Nine Elms, in September 1964 35030 moved to Weymouth where it stayed up to April 1967. There was then a brief return to Nine Elms for three months, prior to withdrawal in July.

Product videos

•

  Hornby | Rebuilt Merchant Navy Class, Elder Dempster Lines R3617

Video links are generated algorithmically and may not necessarily be this precise product.

Catalogue listing

Model details

Prototype information

^* Class names often change over the lifespan of a locomotive, so this is not necessarily the class name used by the operator in the period modelled.

Hornby BR 4‑6‑2 Merchant Navy Class model, part number R3617, is a ready‑to‑run DCC locomotive with an 8‑pin socket. It is built to OO gauge, measures 290 mm in length and rides on a minimum radius of 438 mm (second radius). The model is fitted with a 5‑pole skew wound motor, power is collected from the driving wheels only, and it uses NEM / tension lock couplings. The finish is described as pristine and the livery is lined green with the British Railways late crest, bearing the running number 35030 and the name Elder Dempster Lines.

The prototype 35030 was the last of the Merchant Navy class built at SR Eastleigh Works, entering traffic on 1 April 1949. Designed by Oliver Bulleid, the class was a 4‑6‑2 Pacific intended for mixed‑traffic duties, capable of hauling high‑speed passenger trains such as the Golden Arrow and freight services at around 75 mph. The original locomotives featured Bulleid’s air‑smoothed casing and an enclosed oil‑bath valve gear, innovations that divided footplate staff and maintenance crews.

Between March and April 1958 the locomotive was rebuilt, losing the air‑smoothed casing and receiving a new boiler and firebox while retaining the original chassis. After rebuilding it continued in service, moving between Nine Elms and Weymouth, before being withdrawn in July 1967. Eleven members of the class survived into preservation.

The Hornby model represents the late‑crest British Railways period of the rebuilt locomotive. It is supplied with a green colour scheme and lined detailing, and is intended for collectors and railway modelers who wish to recreate the appearance of the Merchant Navy class as it appeared in the early 1960s.
