Bachmann 31-922SF

LB&SCR H2 Atlantic 422 LB&SCR Lined Umber

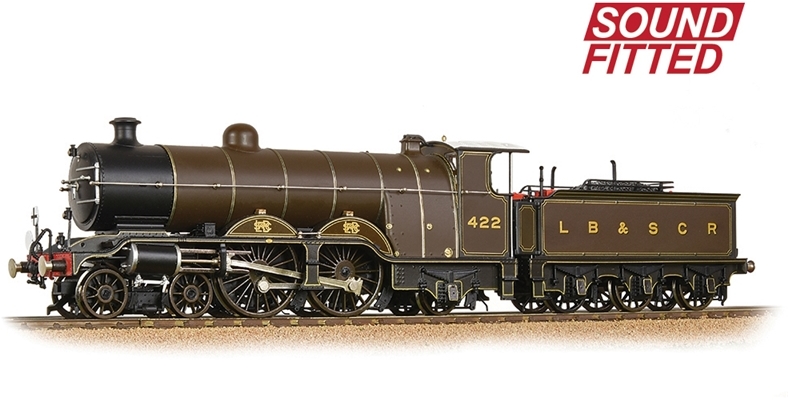

Manufacturer catalogue image - please note that pre-release images may be CAD renders or CGI/AI images rather than photographs

Prototype Era
Era 2 (1875 to 1923) Pre-grouping

Manufacturer description

Announced as part of our Winter British Railway Announcements we are delighted to bring you this SOUND FITTED LB&SCR H2 Atlantic No. 422 in LB&SCR Umber livery.

This era 2 model incorporates a wealth of fine detailing, accurately capturing the features of the H2 Class Atlantic and is supplied with an accessory pack which includes vacuum pipes, Screw-link couplings, route indicator discs and cab doors.

Our SOUND FITTED model features realistic braking sounds, drain cocks and whistles, whilst a function for normal or heavy load has also been included, see full details of the sound functions below.

MODEL FEATURES:

• Bachmann Branchline OO Scale
• Era 2
• Pristine LB&SCR Umber livery with gold lining
• Accessory Pack
• NEM Coupling Pockets
• Tender Pickups
• SOUND FITTED- See below for function list
• Length 260mm (over couplings)

SOUNDS

F1 - Sound (On / Off)

F2 - Brake (Non-Latching)

F3 - Cylinder Drain Cocks

F4 - Single Whistle (Speed Related)

F5 - Reverser

F6 - Shovelling Coal

F7 - Injectors

8F - Blower

9F - Flange Squeal (Speed Related)

F10 - Safety Valve

F11 - Detonators

F12 - Water Tank Filling

F13 - Coupling Clank

F14 - Light Engine Mode

F15 - Fade All Sounds

F16 - Guard’s Whistle

F17 - Auto Wagon Buffering

F18 - Unfitted Freight Mode

F19 - Pinned Brakes

F20 -Hand Brake

F21 - Short ‘Toot-toot’

F22 - Medium Duration Swell Whistle

F23 - Long Duration ‘Played’ Whistle

F24 - ‘Clear from the Guard’

F25 - ‘Going Under, Charlie’

F26 - Guard to Driver Instructions

F27 - Volume Down

F28 - Volume Up

Analogue Users: Please note that exhaust and motion, automatic and randomised sounds will also operate when this model is used on analogue control (DC) straight from the box!

LB&SCR H2 HISTORY

In 1911 the LB&SCR's operations were under strain as 150 locomotives and tenders were awaiting works repairs. Acting superintendent Lawson Billinton was instructed to allow unlimited overtime at Brighton Works to ensure as many as possible were ready for the summer, he was also granted the authority to construct more 4-4-2 'Atlantic' locomotives to help ease the strain on operations. Refining the design of D. E. Marsh's H1 Atlantic, six H2 Atlantics were ordered from Brighton Works on 4th April 1911 and with a much-needed quick turnaround they entered into traffic between June 1911 and January 1912, numbered 421 - 426.

Initially classified as H1/s, the 's' denoted the incorporation of a Schmidt Superheater into the design of the internal boiler layout. Other changes to the H1 design included an increase in the size of the cylinders and the use of 10-inch piston valves, while the smoke box was carried on a separate saddle. The most significant change was the reduction in boiler pressure from 200lb to 170lb per square inch, the intention was to lower boiler maintenance but not to reduce performance, however, the reduction did impact their speed.

Once in service, they shared duties with the H1s on London-Brighton express trains including the Pullman services ‘The Brighton Limited’ and ‘The Southern Belle’, which the LB&SCR described as 'The most luxurious train in the World'. From 1925 the H2 was gradually replaced on London-Brighton services, however, there was still plenty of work on other routes including boat-train duties connecting the Newhaven-Dieppe ferry. It was at this time that they were all given names highlighting geographical features along the south coast.

Between 1935 and 1937 the locomotives were altered to suit the composite loading gauge; further alterations came in 1938 when Oliver Bulleid increased the H2 boiler pressure to match that of the H1s at 200lb per square inch. When cross-channel ferry services were suspended due to World War Two, some locomotives were put into store whilst others found work on other duties in Southern England. The H2s returned to boat train duties after the War until the mid-1950s. One member of the Class was withdrawn in 1949, but the remainder continued in regular use until 1956 and the last was withdrawn in April 1958. None have survived into preservation; however, a new build locomotive is nearing completion at the Bluebell Railway.

Catalogue listing

Model details

Prototype information

^* Class names often change over the lifespan of a locomotive, so this is not necessarily the class name used by the operator in the period modelled.

Bachmann Branchline OO‑scale model of London, Brighton & South Coast Railway H2 Class Atlantic locomotive No 422, finished in pristine LB&SCR Umber livery with gold lining. The model measures 260 mm over couplings, uses NEM‑type coupling pockets, and is supplied with an accessory pack containing vacuum pipes, screw‑link couplings, route‑indicator discs and cab doors.

A true era‑2 model, it is DCC sound fitted with a full complement of realistic functions including brake sounds, cylinder drain cocks, single and multiple‑duration whistles, safety‑valve, water‑tank filling, shovelling coal and various guard‑to‑driver instructions. The sound programme also operates on analogue (DC) control, providing exhaust, motion and randomised effects straight from the box.

The real H2 Atlantics were built at Brighton Works between June 1911 and January 1912, six in total, numbered 421‑426. Designed by Lawson Billinton as an evolution of the earlier H1, they featured Schmidt superheaters, larger cylinders and reduced boiler pressure of 170 lb / in². They served express services such as “The Brighton Limited” and “The Southern Belle”, later handling boat‑train duties. The class remained in service until the mid‑1950s, with the last member withdrawn in April 1958; none survived into preservation, though a new‑build replica is nearing completion at the Bluebell Railway.
