Bachmann 31-362BSF

Class 03 03056 BR Blue

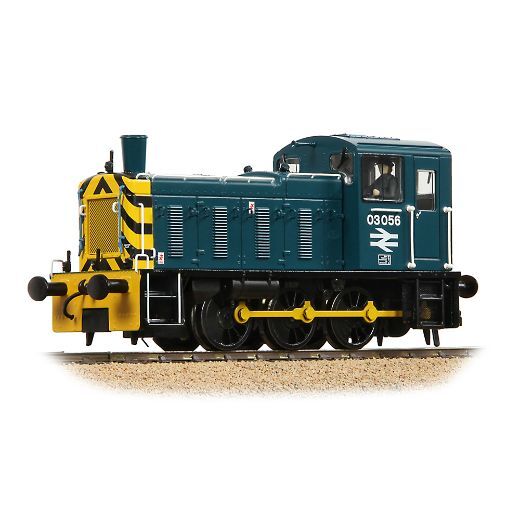

Manufacturer catalogue image - please note that pre-release images may be CAD renders or CGI images rather than photographs

Prototype Era
Era 7 (1972 to 1982) British Rail Blue (TOPS)

Manufacturer description

We are delighted to welcome the Class 03 Diesel Shunter back to the Bachmann Branchline OO scale range as No. 03056 in BR Blue livery with the distinct wasp stripes at either end. Taking advantage of the technical upgrades undertaken to the popular Branchline model a few years ago, this Class 03 features a coreless motor and being SOUND FITTED, is supplied with a Speaker and DCC Sound Decoder pre-fitted.

The Bachmann Branchline model combines a detailed chassis, depicting the jackshaft drive arrangement of the prototype and complete with sandboxes, sandpipes and underframe equipment, with a high fidelity bodyshell adorned with numerous separately-fitted detail parts. The distinctive bonnet doors are fitted with separate handrails, with further separate handrails to be found around the cab, at the front of the locomotive and on the running plate. Lamps irons and windscreen wipers are each fitted individually, as is the flowerpot chimney and the turned metal air horn. With NEM coupling pockets, the standard tension lock couplings can be removed and replaced with the supplied filling piece to complete the look of the deep bufferbeams that are a feature of the prototype. Finished with an exquisite livery application using authentic colours, logos and fonts, this is an attractive addition to any OO scale collection.



MODEL FEATURES:

• Bachmann Branchline OO Scale
• Era 7
• Pristine BR Blue (Wasp Stripes) livery
• Running No. 03056
• Flowerpot Chimney
• Single Air Horn
• NEM Coupling Pockets
• Sprung Buffers
• Powerful Coreless Motor
• Detailed Cab Interior with pre-fitted Driver in one cab
• Cab Lighting (when used on DCC only)
• Locomotive Ready to Accept a Speaker
• Accessory Pack
• SOUND FITTED - Fitted with a Zimo MS590N18 DCC Sound Decoder - See below for the function list
• Length 105mm



SOUNDS:

F1 - Sound On/Off

F2 - Brake

F3 - Horn (Playable)

F4 - Two-Tone Horn

F5 - Light Engine Mode

F6 - Engine Idle

F7 - Shunting Mode

F8 - Cold Start

F9 - Flange Squeal (Speed Related)

F10 - Cab Light

F11 - Buffering Up

F12 - Coupling Sounds

F13 - Low Toot

F14 - High Toot

F15 - Windscreen Wipers

F16 - Dispatch Whistle

F17 - On - Driver's Door Opening / Off - Driver's Door Closing

F18 - Fade All Sounds

F19 - On - “Draw up” / Off - “6ft, 4ft, 2ft, Whoa!”

F20 - “Squeeze Up”

F21 - On - "Going Under” / Off - "Clear to go under”

F27 - Volume Down

F28 - Volume Up

Analogue Users: Please note that normal load running sounds and any other automatic or randomised sounds will also operate when this model is used on analogue control (DC) straight from the box!



CLASS 03 HISTORY

The Class 03 diesel shunters were introduced between 1957 and 1962 and with 230 built, the type was one of BR's most successful small 0-6-0 diesel-mechanical shunters and was adopted as BR’s standard small shunter. A development of the Class 04 ‘Drewry’ shunter, construction was shared between British Railways' Swindon Works and Doncaster Works and initial allocations for the class covered all regions except Scotland. Shunting was the main employment, with their short wheelbase and light weight making them particularly useful in areas where weight restrictions or tight trackwork existed. Examples were also assigned to station pilot duties and due to the short wheelbase, it was common for them to be coupled to a ‘shunter’s truck’ or ‘runner wagon’ to ensure sufficient length for reliable operation of track circuits.

Weighing in at 30 Tons, some 18 Tons less than the Class 08 diesel shunter, the Class 03’s were fitted with Gardner engines and their distinctive jackshaft drive arrangement gave the locomotives a top speed of 28½ mph. Despite their usefulness, a downturn in shunting requirements meant that withdrawals began in 1968, although the last remained in service on mainland Britain until 1987. Two examples operated on the Isle of Wight, with lowered cab roofs to account for the restricted loading gauge, and these remained in traffic on the island until 1993. One of these Isle of Wight locos, No. 03179, was resurrected by West Anglia Great Northern in 1998 to shunt their Hornsey Depot. Subsequently operated by First Capital Connect, the loco was finally withdrawn in 2008 after which the locomotive was preserved bringing the total number of surviving examples to 56.

Service Manuals You might be also interested in the following items:

Catalogue listing

Model details

Prototype information

^* Class names often change over the lifespan of a locomotive, so this is not necessarily the class name used by the operator in the period modelled.

Bachmann's OO scale Class 03 diesel shunter is a highly detailed model that features a coreless motor and is supplied with a speaker and DCC sound decoder pre-fitted. The model is finished in pristine BR Blue livery with wasp stripes and is a representation of the Class 03 diesel shunters that were introduced between 1957 and 1962.

The model has a length of 105mm and features a detailed chassis with a jackshaft drive arrangement, as well as separately-fitted detail parts such as handrails, lamps irons, windscreen wipers, and a flowerpot chimney. The model also features NEM coupling pockets and sprung buffers.

The model is sound-fitted and features a Zimo MS590N18 DCC sound decoder, which provides a range of functions including sound on/off, brake, horn, light engine mode, and others. The model is also compatible with analogue control and will operate sounds and functions when used on DC.

The Class 03 diesel shunters were a successful class of locomotives, with 230 built and used for shunting duties across the UK network. They were known for their short wheelbase and light weight, making them particularly useful in areas with weight restrictions or tight trackwork. Although withdrawals began in 1968, some examples remained in service until 1987, and a few were preserved, with one example being restored to service in 1998.

The Bachmann model is a highly detailed representation of the Class 03 diesel shunter and is a great addition to any OO scale collection.
