Hornby R3844

BR, Rebuilt Class W1, 4-6-4, 60700 - Era 4

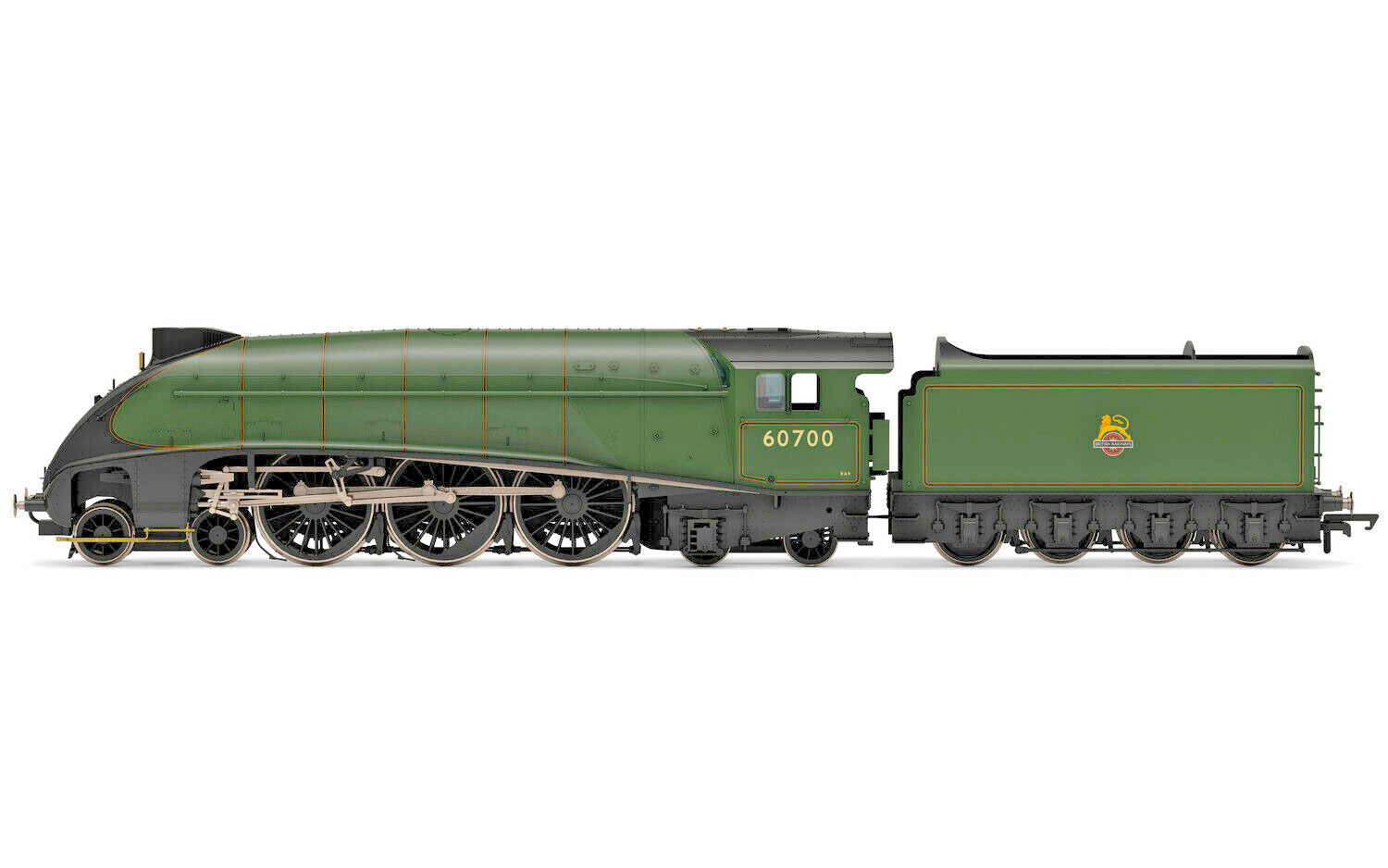

Manufacturer catalogue image - please note that pre-release images may be CAD renders or CGI images rather than photographs

Prototype Eras
Era 3 (1923 to 1947) The Big Four (LNER, LMS, GWR and SR)
Era 4 (1948 to 1956) British Railways Early Crest

Manufacturer description

Having completed nearly 90,000 miles of test running since new, Sir Nigel Gresley's W1 4-6-4 No. 10000 entered Darlington Works on 21 August 1935 for what was anticipated to be a major overhaul and modification. During this period Gresley decided that it was time to rebuild 10000 as a three cylinder locomotive with a conventional firetube boiler. Subsequently, 10000 was moved to the Doncaster Works on 13 October 1936 and this is where the first drawing for the modification were being prepared.

When 10000 was finally released from Doncaster Works in November 1937, it was a significantly different locomotive, being fitted with a diagram 111 boiler that was very similar to the diagram 108 boiler fitted to No. 2006 'Wolf of Badenoch', and with a streamlined casing to the same pattern as the A4 class. As many components as possible from the original W1 were used in the rebuild, including the frames, which were shortened by 1 ½ feet at the front end. Other items, where needed, were sourced from the A4 class, the A3 class or, like the front bogie, from the B17 and an experimental double Kylchap blastpipe and chimney was fitted.

The cab, while similar to that of the A4 class, 60700 was considerably longer and this led to the locomotive's tender's coal delivery chute having to be lengthened to compensate for the extra distance from the firebox doors. The original tender was retained, but with superficial modifications, such as to the curvature of the front plates and the addition of streamlined plating to the front and rear, although this was partially removed just a year later in 1938.

Up to the outbreak of war in 1939 and during the war years, 10000 worked mainly on Kings Cross main line duties and with its power and smooth riding it was a popular engine with the LNER's drivers, though less so with the firemen due to the distance between the shovelling plate and the firehole door. The locomotive also became more 'fitter' friendly after April 1942 when the skirting was removed from ahead and behind the outside cylinders to improve access in wartime conditions.

Post war, at the time of nationalization and now numbered 60700, the corridor tender was swapped for the streamlined non-corridor tender from 60004 William Whitelaw and the locomotive was engaged in more varied duties, working occasional passenger services to Leeds and Cambridge from Kings Cross alongside the occasional 'lodging' turns to Newcastle.

Following allocation to Doncaster on 25 October 1953, 60700 became a more frequent visitor to Leeds and also worked turns to Sheffield, as well as hauling Doncaster to Peterborough passenger services and various braked goods trains. In a similar circumstance to 10000 never receiving its proposed name of 'British Enterprise' in November 1929, 60700 never received its intended name of 'Pegasus', for which the nameplates were cast on 13 April 1951.

Product videos

•

  HM I DCC - Advanced Control System Arrives!

•

  HORNBY | Signal Box - 'Hush Hush' & 'Clan Line'

•

  HORNBY | Introducing HM DCC - HM7000

Video links are generated algorithmically and may not necessarily be this precise product.

Catalogue listing

Model details

Prototype information

^* Class names often change over the lifespan of a locomotive, so this is not necessarily the class name used by the operator in the period modelled.

Hornby BR Rebuilt Class W1 (4‑6‑4) model, catalogue number R3844, represents the LNER locomotive 60700. The OO‑scale model is painted in a green livery with the early British Railways emblem, carries the running number 60700 on the tender, and measures 307 mm in length. It rides on all wheels, uses a 5‑pole skew‑wound motor, and fits a DCC‑ready 8‑pin socket. The minimum curve radius is the second radius (438 mm). Coupling is supplied as NEM with a tension lock, and the model is built to a 4‑6‑4 wheel arrangement on a 4‑6‑4 chassis.

The prototype locomotive began life as the experimental high‑pressure Atlantic No 10000, built at Darlington Works in August 1935. After 90 000 miles of testing Gresley ordered a rebuild as a conventional three‑cylinder engine with a fire‑tube boiler. The locomotive left Darlington for Doncaster Works on 13/10/1936, emerged in November 1937 with a diagram 111 boiler, streamlined casing similar to the A4 class, and shortened frames. Its cab was longer than that of an A4, requiring a lengthened coal chute on the original corridor tender, which was partially streamlined in 1938.

Renumbered 60700 after nationalisation, the engine served principally on the Kings Cross main line before the war and continued in passenger and occasional freight duties after 1945. In 1953 the locomotive was allocated to Doncaster and operated routes to Leeds, Sheffield, Peterborough and other destinations. Although nameplates for “Pegasus” were cast on 13/04/1951, the name was never applied, and the engine was withdrawn without ever receiving a formal name.
