Bachmann 35-356RJ

Class 20/0 Disc Headcode 20100 BR Blue

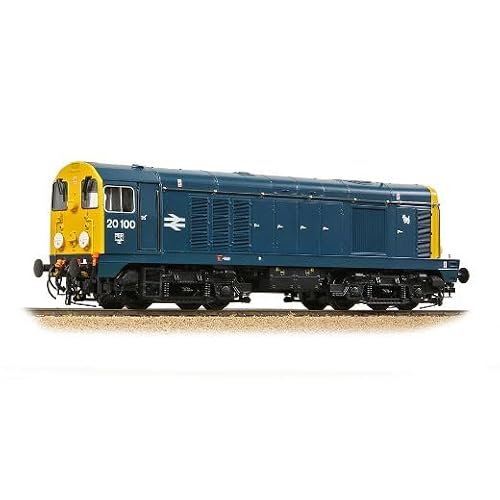

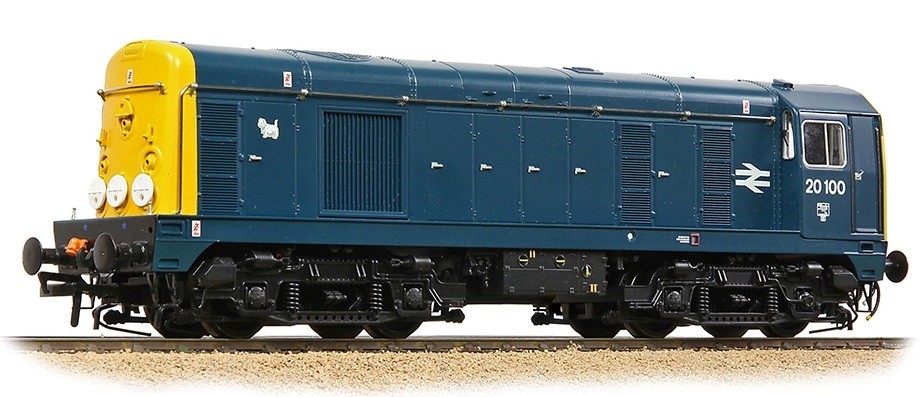

Manufacturer catalogue image - please note that pre-release images may be CAD renders or CGI images rather than photographs

Prototype Eras
Era 7 (1972 to 1982) British Rail Blue (TOPS)
Era 8 (1983 to 1994) British Rail Sectorisation

Manufacturer description

The latest release in our popular series of Sales Area Exclusive models is this OO scale Class 20 Diesel Locomotive. This model, which will be available from retailers in Scotland, the North East and North West of England, and North Yorkshire, depicts Class 20/0 No. 20100 in BR Blue livery with disc headcodes and sporting West Highland Terrier logos – the depot mascot of Eastfield TMD.

This latest generation Bo-Bo diesel locomotive from Bachmann Branchline brings the classic BR Class 20/0 right up to date, capturing the subtle lines of these distinctive locomotives. The high level of detail is brought to life by the intricate livery application, whilst the performance, Plux22 DCC interface and a full suite of lighting offers the perfect complement to the model’s good looks.



• Bachmann Branchline OO Scale
• Era 8
• Pristine BR Blue livery
• Running No. 20100
• Equipped with a Plux22 DCC Decoder Socket – recommended Decoder item No. 36-570A
• Length 190mm



DETAIL VARIATIONS SPECIFIC TO THIS MODEL

• Disc Headcodes (Discs supplied in the Accessory Pack)
• Large (Scottish) Cab Side Windows
• One-Piece Radiator Shutter
• One-Piece Righthand Side Body Handrail
• Drilled Bogie Equalising Beams
• Mechanical Speedo Drive
• Battery Boxes fitted with Additional Cover Clips
• Two Sandboxes per Bogie (Outer Ends only)
• Round Oleo Buffers
• Scottish-Style Bufferbeam
• Nose-end Solebar Handles
• Snowploughs (optional part supplied in the Accessory Pack)
• Air Brake Pipes (optional part supplied in the Accessory Pack)



BACHMANN BRANCHLINE CLASS 20 SPECIFICATION

MECHANISM:

• Five pole, twin shaft motor with two flywheels providing drive to both bogies
• All axle drive
• Electrical pickup from all wheels
• Separate metal bearings fitted to each axle
• Diecast metal chassis block and bogie towers
• Diecast metal gearboxes, with gearing arranged for prototypical running speeds and haulage capabilities
• 5mm (OO gauge) wheels to NEM310 & NEM311 standards with authentic profile and detailing
• Detachable coupling pockets to NEM362 standards fitted to each bogie
• Designed to operate on curves of second radius (438mm) or greater

DETAILING:

• Bogies constructed from multiple components featuring full relief detail
• Rotating radiator fan (un-motorised)
• Separately applied metal detail parts, including handrails, grab handles, sand pipes and etched fan grilles
• Sprung metal buffers
• Each model supplied with a full set of decorated, model-specific bufferbeam pipework and accessory parts

LIGHTING:

• Directional lighting, including headlights and high intensity headlights where applicable, switchable on/off at either end on DCC or Analogue control
• Authentic light colours and temperatures selected for each model based on era and application

DCC:

• Plux22 DCC decoder interface

SOUND:

• Speaker installed in all models for optimum sound reproduction
• Zimo MS450P22 DCC Sound Decoder fitted to SOUND FITTED versions
• Sound files produced specifically for the Bachmann Branchline Class 20 using recordings from real locomotives
• SOUND FITTED models operate on DCC and Analogue control as supplied. On Analogue, an authentic engine start up sequence and running sounds are produced when power is applied

LIVERY APPLICATION:

• Authentic liveries applied to all models
• Multiple paint applications employed on each model using BR and corporate specification colours
• Logos, numerals and text added as appropriate using multi-stage tampo printing using authentic typefaces, logos and colours
• In addition, where applicable Etched Nameplates and Plaques are also provided



CLASS 20/0 HISTORY

The British Railways Board's (BRB) 1955 modernisation plan called for a change to alternative forms of traction and manufacturers were asked to produce trial or initial designs for evaluation. English Electric adapted an existing design based on an export model for a 1,000bhp diesel and 20 were built as a pilot scheme for assessment.

The first batch was built in 1957 and the diesels were assigned to work from Devon's Road depot, East London. The design was a success from the start and by 1962 a total of 127 had been built. Following assessment of all the Type 1 diesels, BRB placed a further order increasing the total to 228 by 1968 and the design became the BR standard for 1,000bhp diesel locomotives. With the introduction of TOPS the locomotives were designated Class 20 and renumbered 20001 to 20228. The locomotives were principally designed for freight work but also saw service on summer passenger trains where train heating was not required. The Class 20s worked over the Eastern, London Midland and Scottish regions as well as into Wales and were commonly associated with coal traffic. The only drawback the Class had was its single end cab, unlike modern designs that have a cab at each end. BR resolved this problem by regularly operating the Class 20s as pairs, nose to nose, and with the combined power of 2,000bhp they were able to haul the heavier block freight trains.

BR's decision to switch to Type 5 and in particular Class 60 diesels in the late 1980s started a gradual withdrawal of the fleet, with just 28 left by 1994. A tribute to the design is that after 45 years the Class is still in service with DRS on mainline duties following refurbishment, the resulting locomotives being designated Class 20/3s. At least 28 of the class are now preserved.

Catalogue listing

Model details

Prototype information

^* Class names often change over the lifespan of a locomotive, so this is not necessarily the class name used by the operator in the period modelled.

Bachmann's latest OO scale model is a Class 20/0 Diesel Locomotive, specifically number 20100 in BR Blue livery with disc headcodes and West Highland Terrier logos. This model is part of the Branchline range and is a Sales Area Exclusive, available from retailers in Scotland, the North East and North West of England, and North Yorkshire.

The model features a high level of detail, including intricate livery application and a full suite of lighting. It is DCC Ready, with a Plux 22 socket, and is equipped with a five pole, twin shaft motor with two flywheels, providing drive to both bogies. The model also features all axle drive, electrical pickup from all wheels, and separate metal bearings fitted to each axle.

The Class 20/0 was a British Rail diesel locomotive built in the 1950s and 1960s for freight and passenger work. The design was a success, with 228 locomotives built, and they were used in various regions across the UK, including the Eastern, London Midland, and Scottish regions, as well as in Wales. The locomotives were eventually phased out in the late 1980s, but at least 28 have been preserved, with some still in service with DRS on mainline duties.

The model features a range of authentic details, including bogies constructed from multiple components, rotating radiator fan, separately applied metal detail parts, and sprung metal buffers. It also includes a full set of decorated, model-specific bufferbeam pipework and accessory parts. The model has a length of 190mm and a minimum radius curve of 2nd radius (438mm).
