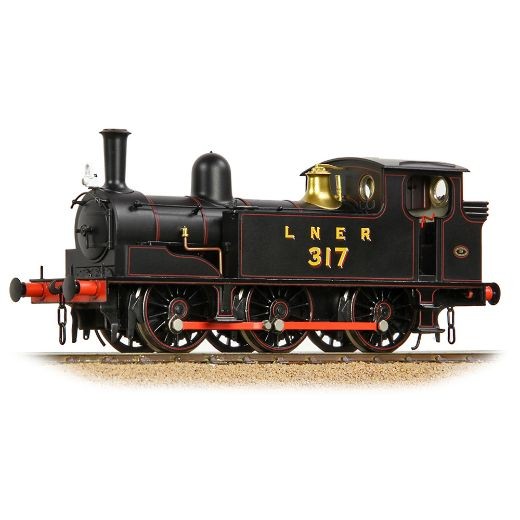

Manufacturer catalogue image - please note that pre-release images may be CAD renders or CGI images rather than photographs
Prototype Era
Era 3 (1923 to 1947) The Big Four (LNER, LMS, GWR and SR)
Manufacturer description
The North Eastern Railway E Class 0-6-0T, later the LNER J71, was the forerunner to the E1 (LNER J72) and whilst models of the E1 have famously been made by Bachmann and its predecessor Mainline Railways for almost 50 years, the NER E Class has never been produced in OO Scale, until now!
Drawing inspiration from the all-new Branchline E1 model that was launched to great acclaim just a few years ago, the new E Class employs a wealth of new tooling to accurately depict the NER’s original standard 0-6-0 tank locomotive. Despite the similarities, the E Class is instantly recognisable thanks to its larger driving wheels, while the smaller bunker means that the tanks, cab and bunker on this Branchline model are all-new too. Then there is the original boiler with clack valves and Ramsbottom safety valves – another early feature that necessitates its own, dedicated tooling.
The model boasts a diecast metal running plate with integral tank weights, again produced new for the E Class to portray the differences seen between the E and E1, and to this the precision moulded components are added, from the tanks to the boiler and many smaller details alongside. Metal parts are then used to replicate features like the lamp irons, guard irons and sand pipes, and the handrails are made from metal wire which is fitted into turned metal knobs.
Inside, the Branchline E Class employs a coreless motor with diecast gearbox and the driving axles each have separate metal bearings, a combination that ensures smooth and reliable running. With electrical pickup from all wheels, a firebox lighting system and Next18 DCC interface, plus a pre-fitted speaker in every model, the E Class boasts the same impressive technical specification as its E1 relative. Whilst the drive train and electronics may not be visible, every part of the model that can be seen is treated to an exquisite paint finish to complete the look, with rich colours and precision printing of the numbering and lettering to produce a model as elegant as its Victorian prototype.
What’s more, this SOUND FITTED model with its pre-fitted ESU Loksound V5DCC Sound Decoder is ready to be used on both analogue and DCC straight from the box, providing authentic sound effects for an extra level of realism!
This model of No. 317 forms part of our new Railway Celebrations range and depicts the locomotive that took part in the 100th Anniversary celebrations of the opening of the Stockton & Darlington Railway. In 1925, to mark the centenary, a celebration of railways featuring locomotives from the past century was put on by the London & North Eastern Railway (LNER). Opened by the Duke and Duchess of York – later King Geroge VI and Queen Elizabeth – a procession of locomotives took place over some six miles of line between Stockton and Darlington, passing the royal grandstand and delighting the hundreds of thousands of onlookers who turned out to witness the celebrations.
The parade of 53 locomotives not only showcased the evolution of the steam locomotive, but also included alternative forms of power, such as the LNER’s Electric Locomotive No. 9 which had been built by the North Eastern Railway (NER) in 1914. With the parade taking place on non-electrified lines, J71 No. 317 was used to haul the electric locomotive and so cemented its place in railway history.
- Bachmann Branchline OO Scale
- Era 3
- Pristine LNER Lined Black Livery
- Running No. 317
- SOUND FITTED – Fitted with a ESU Loksound V5DCC Sound Decoder – See below for the function list
- Length 118mm (over couplings)
- Part of our Railway Celebrations range
DETAIL VARIATIONS SPECIFIC TO THIS MODEL
- Boiler Clack Valves
- Ramsbottom Safety Valves
- Pipe Whistle
- Steam Brakes Only
- Plain Smokebox Door
- Smokebox Door Handwheel
- Parallel Shank Buffers with Round Mounts
- Coal Bunker with Coal Rails fitted
- Rear Cab Windows without Bars
BACHMANN BRANCHLINE NER E CLASS (J71) SPECIFICATION
MECHANISM:
- Coreless motor
- Electrical pickup from all wheels
- Separate metal bearings fitted to each driving axle
- Diecast metal chassis block
- Diecast metal gearbox, with gearing arranged for prototypical running speeds and haulage capabilities
- 5mm (OO gauge) wheels to NEM310 & NEM311 standards with authentic profile and detailing
- Detachable coupling pockets to NEM362 standards fitted at each end
- Designed to operate on curves of second radius (438mm) or greater
DETAILING:
- Diecast metal running plate with integral side tank weights
- Precision moulded plastic boiler, side tanks, cab and bunker
- Separately applied details including splashers, tank filler hatches, safety valves, dome and chimney, smokebox handles, clack valves* and vacuum pipes* (*where applicable)
- Individual metal detail components including handrails, handrail knobs, guard irons, lamp irons and turned metal whistle
- Highly detailed and decorated cab interior including controls, dials, gauges and tool cabinets with separately fitted regulator, reverser and handbrake
- Running gear detailing includes springs, brakes and separately fitted brake gear, sandboxes and sandpipes
- Glazed cab spectacles
- Sprung metal buffers
- Each model supplied with an accessory pack including cab doors, additional bufferbeam pipework, poseable lamps and three-link couplings
LIGHTING:
- Firebox Glow (on analogue) / Firebox Glow & Flicker (on DCC or when SOUND FITTED models are used on analogue)
DCC:
- Next18 DCC decoder interface
SOUND:
- Speaker installed in all models for optimum sound reproduction
- ESU Loksound Micro V5DCC Sound Decoder fitted to SOUND FITTED versions
- Sound files produced specifically for the Bachmann Branchline J71 using recordings from real locomotives
- SOUND FITTED models operate on DCC and Analogue control as supplied
LIVERY APPLICATION:
- Authentic liveries applied to all models
- Multiple paint applications employed on each model
- Logos, numerals and text added as appropriate using multi-stage tampo printing incorporating authentic typefaces, logos and colours
SOUNDS
F1 - Sound - On/Off
F2 - Brake (Non-Latching)
F3 - Cylinder Drain Cocks
F4 - Whistle (Playable)
F5 - Normal Load / Heavy Load
F6 - On - Firebox Door Opening / Off - Firebox Door Closing
F7 - Injectors
F8 - Whistle
F9 - Flange Squeal (Speed Related)
F10 - Shovelling Coal (F6 must be On)
F11 - Blower (Sound Only / Stationary and with F6 On - Sound and Lights)
F12 - Hand Brake (locomotive won’t move with Hand Brake applied)
F13 - Water Tank Filling
F14 - Coupling/Un-coupling Clank
F15 - Safety Valve
F16 - Guard's Whistle & Driver’s Response Toot
F17 - Coasting
F18 - On - Sounds Fade Out / Off - Sounds Fade In
F19 - Shunt Mode (Reduces Speed)
F20 - Acceleration/Deceleration Inertia Off
F21 - Volume Control (LATCH = Volume On/Off) or (TRIGGER = cycles 6 Volume Levels)
F22 - Rail Join Clatter
Analogue Users: Please note that normal load running sounds, acceleration steam chuff sounds and any other automatic and randomised sounds will also operate when this model is used on analogue control (DC) straight from the box!
NER E CLASS (J71) HISTORY
The NER E Class 0-6-0 Tank Locomotive, later classified as J71 by the London & North Eastern Railway (LNER), was designed by Thomas W. Worsdell for the North Eastern Railway and was intended to become the company’s standard design for shunting engines. T. W. Worsdell became the NER’s Locomotive Superintendent in 1885 and a year later, the first E Class tank entered traffic. Eventually totalling 120 locomotives, 60 were built under T. W. Worsdell’s tenure, followed by 60 more when his brother Wilson Worsdell took over as Locomotive Superintendent following Thomas’s retirement in 1890. Construction ceased in 1895 and three years later, Wilson introduced his own take on the design, the E1 Class, the first of which entered traffic in 1898.
The E Class was set apart from the later E1s by having larger driving wheels and smaller cylinders. The splashers were larger as a result of the larger wheels, meanwhile the ‘Es’ sported smaller bunkers and were not fitted with coal rails at first, although these were later included. Early examples had clack valves feeding the boiler with Ramsbottom safety valves and a bell whistle. Later, Ross Pop safety valves and a tubular whistle were fitted and the clack valves were removed, bringing commonality between the E and E1 types. Metal bufferbeams were employed as built, but later many were fitted with wooden planks sandwiched between two metal sheets, as found on the later E1 engines.
The E Class tanks were found to be suitable workhorses for the NER’s sprawling network across the North East, particularly at coastal ports, freight depots and wharves where tracks could feature tight curves and weight restrictions were often in place. They were also suited to station pilot duties and local trip working, as well as allocations at the NER’s Darlington Works and Shildon workshops where they handled internal movements. All 120 locomotives passed into LNER ownership upon Grouping in 1923, becoming J71s, and remained in similar roles to those the NER had previously assigned them. By 1930 however, the E1s (now classified as J72s by the LNER) had started to replace the older J71s and by the time of Nationalisation in 1948, the class had been depleted by almost a third, leaving 81 examples in traffic.
The fleet that British Railways (BR) inherited in 1948 remained largely intact to start with, but by the 1950s they were being replaced by new 350hp Diesel Shunters (later BR Class 08) and by 1961 the final J71, No. 68233, had been withdrawn after a service life of 74 years. None survived into preservation.
